Synonyms	Chlorocyperus rotundus (L.) Palla
	Chlorocyperus salaamensis Palla
	Cyperus agrestis Willd. ex Spreng. & Link
	Cyperus arabicus Ehrenb. ex Boeckeler
	Cyperus bicolor Vahl
	Cyperus bifax C.B.Clarke
	Cyperus bulbosostoloniferus Miq.
	Cyperus comosus Sm.
	Cyperus disruptus C.B.Clarke
	Cyperus herbicavus Melliss
	Cyperus hexastachyos Rottb.
	Cyperus hildra Poir.
	Cyperus hydra Michx.
	Cyperus laevissimus Steud.
	Cyperus leptostachyus Griff.
	Cyperus merkeri C.B.Clarke
	Cyperus micreilema Steud.
	Cyperus nubicus C.B.Clarke
	Cyperus ochreoides Steud.
	Cyperus oliganthus Gand.
	Cyperus olivaris O.Targ.Tozz.
	Cyperus platystachys Cherm.
	Cyperus procerulus Nees
	Cyperus pseudovariegatus Boeckeler
	Cyperus purpureovariegatus Boeckeler
	Cyperus radicosus Sm.
	Cyperus rudioi Boeckeler
	Cyperus taylorii C.B.Clarke
	Cyperus tetrastachyos Desf.
	Cyperus tuberosus Rottb.
	Cyperus weinlandii Kük.
	Cyperus yoshinagae Ohwi
	Pycreus rotundus (L.) Hayek
	Schoenus tuberosus Burm.f.
Common name (en)	Nut grass
Common name (de)	Knollige Zypergras
Common name (es)	Cípero
Common name (fr)	Souchet rond
Common name (hi)	मोथा
Common name (id)	Teki ladang
Common name (ja)	ハマスゲ
Common name (ko)	향부자
Common name (ru)	Сыть круглая
Common name (th)	แห้วหมู
Common name (vi)	Củ gấu
Common name (zh)	香附

Related herbal drug(s)

Sample preparation	1 g of powdered drug in 5 mL of methanol, sonicate for 10 min and centrifuge. The supernatant is used as test solution
Mobile phase	Toluene, ethyl acetate 90:10 (v/v)
Derivatization	Derivatize with anisaldehyde reagent, and heat the plate at 100°C for 3 min
System Suitability Test (SST)	Under UV 254 nm, prior to derivatization Isoeugenol: quenching zone at R_F ~ 0.43 Isoeugenyl acetate: quenching zone at R_F ~ 0.50
Specific marker(s)	Under UV 366 nm, after derivatization alpha-cyperone: blue fluorescent zone at R_F ~ 0.42 (under UV 366 nm after derivatization)
HPTLC Chromatograms (different origin(s))
HPTLC Chromatograms (related drug(s))
ATLAS documents	ATLAS Method document of Cyperus rotundus Image comparison of Cyperus rotundus Image comparison of Cyperus rotundus and related herbal drugs Selection of the ATLAS method visionCATS data (CAMAG software)

Sample preparation	1 g of powdered drug in 5 mL of methanol, sonicate for 10 min and centrifuge. The supernatant is used as test solution
Mobile phase	Toluene, ethyl acetate 90:10 (v/v)
Derivatization	Derivatize with anisaldehyde reagent, and heat the plate at 100°C for 3 min

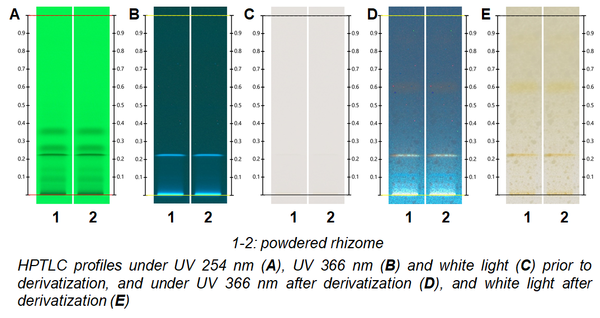

HPTLC Chromatograms (evaluated method)

Sample preparation	1 g of powdered drug in 5 mL of methanol, sonicate for 10 min and centrifuge. The supernatant is used as test solution
Mobile phase	Toluene, ethyl acetate 90:10 (v/v)
Derivatization	Spray with anisaldehyde reagent, and heat the plate at 100°C for 3 min
HPTLC Chromatograms (evaluated method)

Sample preparation	1 g of powdered drug in 10 mL of methanol, sonicate for 10 min and centrifuge. The supernatant is used as test solution
Mobile phase	Toluene, ethyl acetate 95:5 (v/v)
Derivatization	Spray with anisaldehyde reagent, and heat the plate at 100°C for 3 min
HPTLC Chromatograms (evaluated method)

Sample preparation	Weigh 3.0 g of the powdered sample and place it in a 50-mL conical flask, then add 20 mL of methanol. Sonicate (220 W) the mixture for span style="color:red">30 min. Filter the mixture
Mobile phase	n-hexane, ethyl acetate, glacial acetic acid (9:1:0.1 (v/v/v)
Derivatization	Weigh 1.5 g of 2,4-dinitrophenylhydrazine and dissolve in 20 mL of sulphuric acid (50%, v/v). Transfer the solution to a 100-mL volumetric flask and make up to the mark with water. Filter the solution
HPTLC Chromatograms (evaluated method)

Sample preparation	Macerate 1 g of the powder in 5 ml of ether for 1 hour with frequent shaking, filter an evaporate the filtrate to dryness. Dissolve the residue in 0.5 ml of ethyl acetate
Mobile phase	Dichloromethane, ethyl acetate, glacial acetic acid 80:1:1 (v/v/v)
Derivatization	Spray with 2,4-dinitrophenylhydrazine reagent (1.5 g of 2,4-dinitrophenylhydrazine in 20 mL of sulphuric acid (50%, v/v)). Transfer the solution to a 100-mL volumetric flask and make up to the mark with water. Filter the solution.
HPTLC Chromatograms (evaluated method)

Sample preparation	Add 1.0 g of powdered sample to 10 mL of methanol, heat under reflux for 30 minutes, cool, filter and use 5 µL of the filtrate
Mobile phase	n-Hexane, ethyl acetate 4:1 (v/v)
Derivatization	Spray with anisaldehyde reagent, and heat the plate at 105°C for 2 min
HPTLC Chromatograms (evaluated method)

Sample preparation	Macerate 1 g of the powder in 5 ml of ether for 1 hour with frequent shaking, filter an evaporate the filtrate to dryness. Dissolve the residue in 0.5 ml of ethyl acetate
Mobile phase	Dichloromethane, ethyl acetate, glacial acetic acid 80:1:1 (v/v/v)
Derivatization	Spray with 2,4-dinitrophenylhydrazine (Weigh 1.5 g and dissolve in 20 mL of sulphuric acid (50%, v/v). Transfer the solution to a 100-mL volumetric flask and make up to the mark with water. Filter the solution)
HPTLC Chromatograms (evaluated method)
