HPTLC Association | HPTLC ATLAS

Related herbal drug(s)

Sample preparation	Extract 1 g of powdered sample with 10 mL methanol and 1 mL 18M ammonia by refluxing in a water bath for 10-15 min, cool and filter.
Mobile phase	1-propanol, anhydrous formic acid, water 90 : 1 : 9 (v/v/v)
Derivatization	Spray with Dragendorff's reagent followed by sodium nitrite solution
HPTLC Chromatograms (evaluated method)

Sample preparation	To 250 mg of the powdered herbal drug add 4 mL of a mixture of 20 volumes of water and 80 volumes of methanol. Sonicate for 10 min and filter. Wash the residue with 2 quantities, each of 2 mL, of methanol. Combine the solutions and dilute to 20 mL with methanol
Mobile phase	Formic acid, water, ethyl acetate 10:10:80 (v/v/v)
Derivatization	No derivatization
System Suitability Test (SST)	According to the monograph
HPTLC Chromatograms (evaluated method)

Sample preparation	Sonicate 0.25 g of (finely) powdered Goldenseal root and rhizome in 4 mL of 80% methanol for 30 min. Withdraw the supernatant, and wash the residue twice with 2-mL aliquots of methanol. Combine the supernatant and rinse liquids in a 20-mL volumetric flask, and adjust with methanol to volume. Mix well and filter before use
Mobile phase	Ethyl acetate, methanol, formic acid, and water 50:10:6:3 (v/v/v/v)
Derivatization	No derivatization
System Suitability Test (SST)	According to the monograph

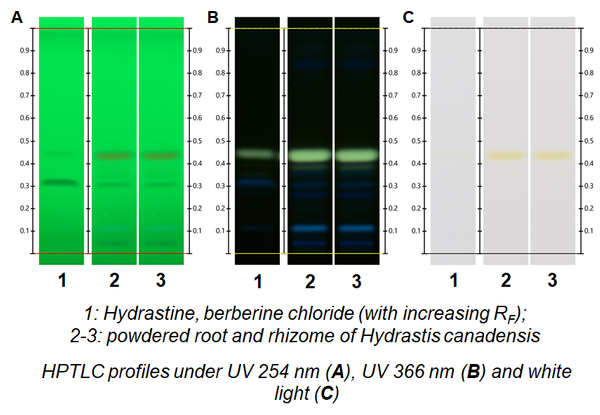

Specific marker(s)	Under UV 366 nm USP Hydrastine RS: blue fluorescent zone at R_F ~ 0.27 USP Berberine chloride RS: green fluorescent zone at R_F ~ 0.46
HPTLC Chromatograms (evaluated method)
