HPTLC ATLAS



Botanical Information Zingiber officinale Roscoe

Synonyms Amomum zingiber L.
Amomum zinziba Hill
Zingiber cholmondeleyi (F.M.Bailey) K. Schum.
Zingiber missionis Wall.
Zingiber sichuanense Z. Y. Zhu, S. L. Zhang & S. X. Chen
Zingiber zingiber (L.) H. Karst.
Common name (en) Ginger
Common name (de) Ingwer
Common name (fr) Gingembre
Common name (ja) ショウガ
Common name (ko) 생강
Common name (th) ขิง
Common name (vi) Gừng
Common name (zh)

Sample preparation Dilute 10 µL of the essential oil to be examined to 1 mL with toluene
Mobile phase Toluene, ethyl acetate 95:5 (v/v)
Derivatization Treat with anisaldehyde solution, heat at 100 °C for 3 min; examine immediatly in daylight
System Suitability Test (SST) Under UV 254, prior to derivatization
  • Isoeugenol: quenching zone at RF ~ 0.36
  • Isoeugenyl acetate: quenching zone at RF ~ 0.40
Specific marker(s) Under UV 366 nm, after derivatization
  • 6-gingerol: brownish-purple zone RF ~ 0.02
  • geraniol: purple zone RF ~ 0.13
  • 6-shogaol: brownish-purple zone RF ~ 0.19
  • citral: brownish-purple zone RF ~ 0.33

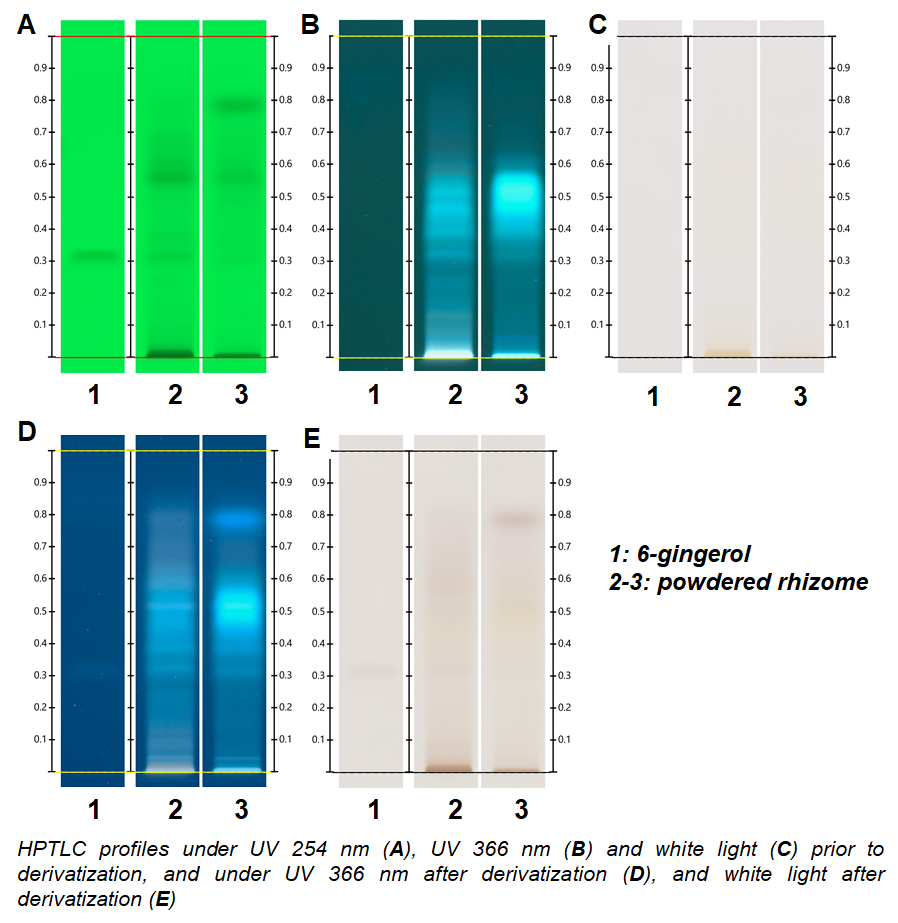

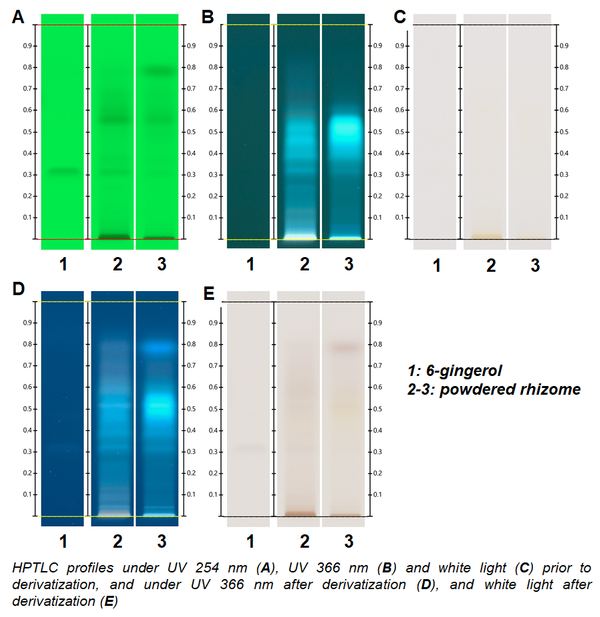

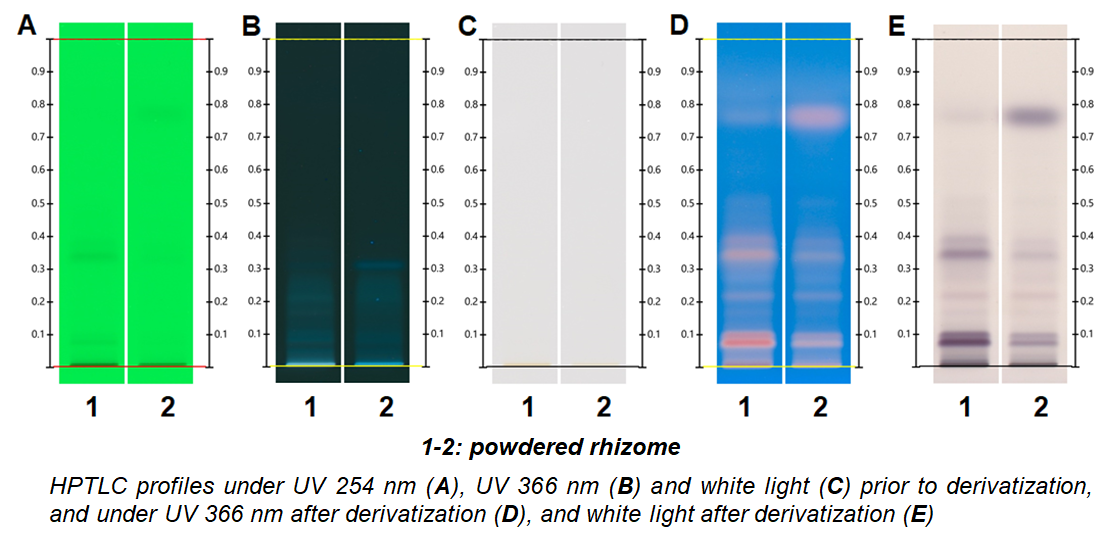

HPTLC Chromatograms (evaluated method)
Sample preparation To 1.0 g of the powdered herbal drug add 10 mL of methanol. Sonicate for 10 min and centrifuge
Mobile phase Toluene, ethyl acetate 3:1 (v/v)
Derivatization Derivatize with anisaldehyde reagent, and heat the plate at 100°C for 3 min.
System Suitability Test (SST) Under development
Specific marker(s) Under UV 366 nm, after derivatization
  • 6-gingerol: orange zone RF ~ 0.24
  • 8-gingerol: orange zone RF ~ 0.27
  • 10-gingerol: orange zone RF ~ 0.29
  • 6-shogaol: orange zone RF ~ 0.53
HPTLC Chromatograms (different origin(s))
HPTLC Chromatograms (related drug(s))
ATLAS documents Atlas method document of Zingiber officinale
Image comparison of Zingiber officinale
Image comparison of Zingiber officinale and related herbal drugs
Selection of the ATLAS method of Zingiber officinale
