HPTLC ATLAS



Botanical Information Alpinia japonica (thumb.) Miq.

Synonyms Alpinia agiokuensis Hayata
Alpinia kiushiana Kitam.
Globba japonica Thunb.
Languas oxyphylla (Miq.) Merr.
Languas oxyphylla (Miq.) Merr.
Common name (fr) Gingembre à la menthe
Common name (ko) 미사인

Related herbal drug(s)

Alpinia galanga (L.) Willd.
Alpinia hainanensis K. Schum.
Alpinia oxyphylla Miq.
Amomum aculeatum Roxb.
Amomum aromaticum Roxb.
Amomum compactum Sol. ex Maton
Amomum longiligulare T.L.Wu
Amomum tsao-ko Crevost & Lemarié
Amomum verum Blackw.
Amomum villosum Lour.
Amomum dealbatum Roxb. (procuring samples)
Amomum subulatum Roxb. (procuring samples)


Sample preparation To 1 g of the powdered herbal drug add 5 mL of methylene chloride. Sonicate for 10 min. Centrifuge and use the supernatant
Mobile phase Ethyl acetate, toluene 7:93 (v/v)
Derivatization Spray with anisaldehyde solution and heat at 100°C for 3 min
System Suitability Test (SST) Under development
Specific marker(s) Under white light, after derivatization
  • alpinetin: yellow zone RF ~ 0.01
  • cardamomin: yellow zone RF ~ 0.13
  • borneol: greyish-brown zone RF ~ 0.19
  • 1,8-cineol: bluish-violet zone RF ~ 0.37
  • bornyl acetate: greyish-brown RF ~ 0.52

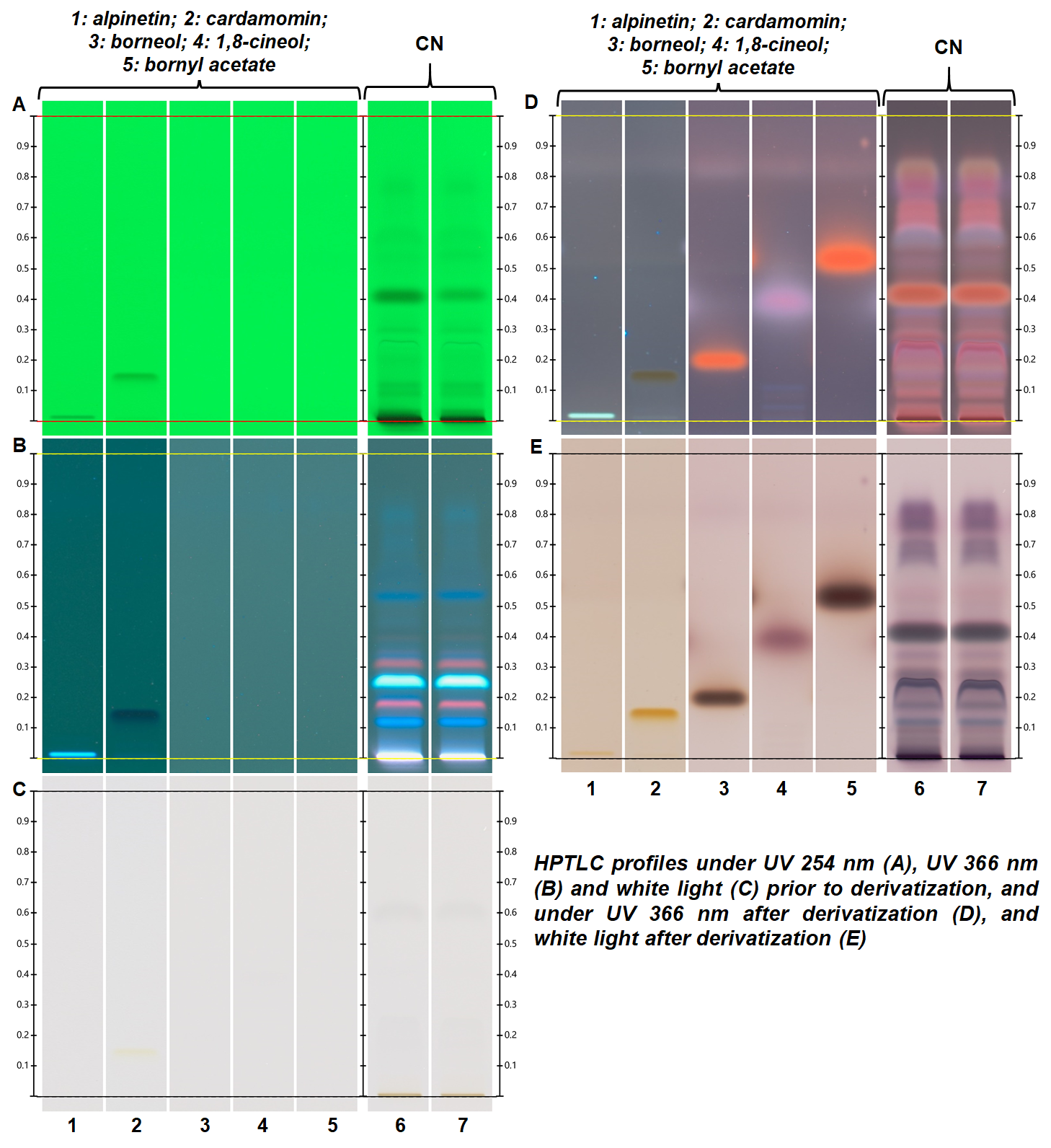

HPTLC Chromatograms (different origin(s))

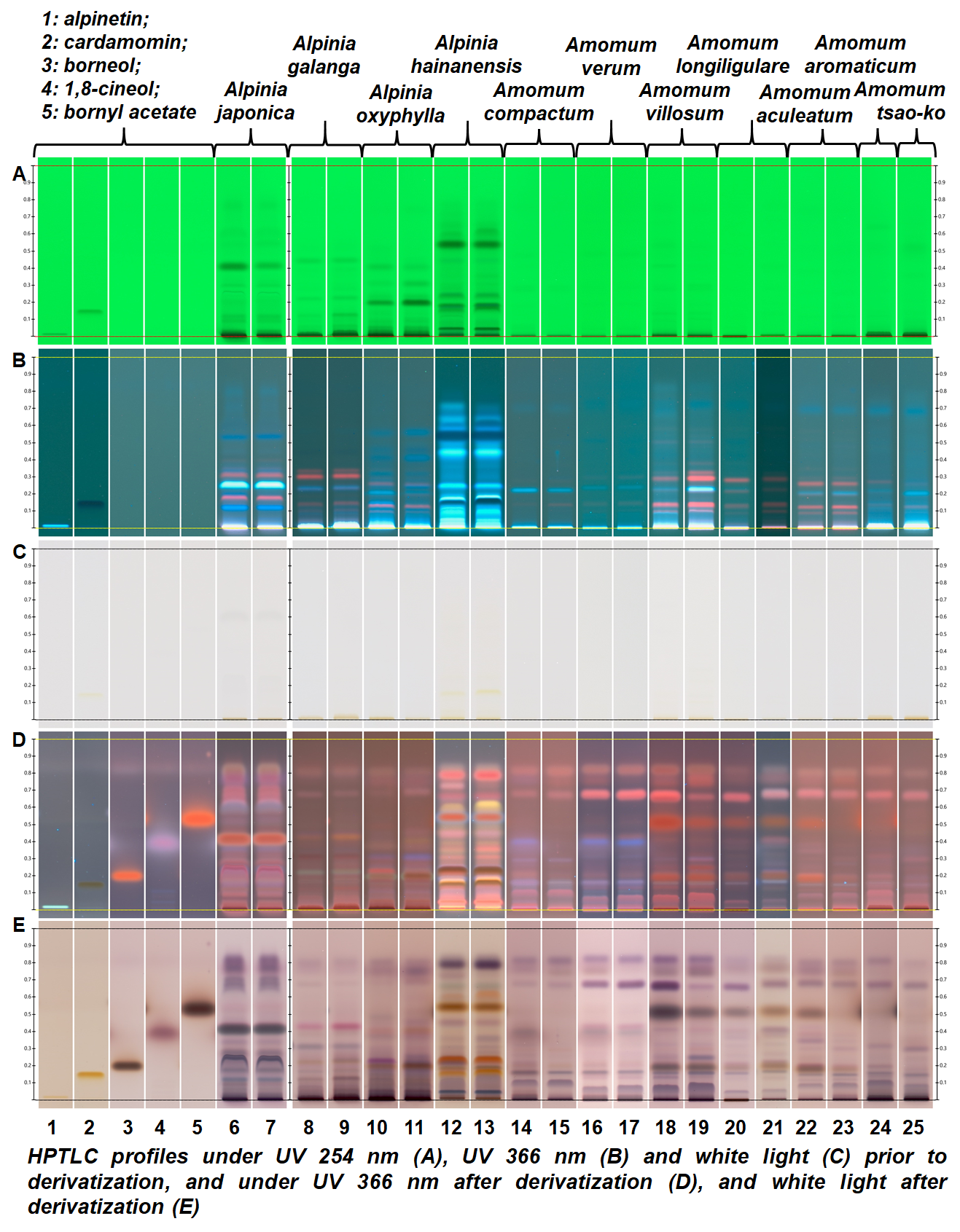

HPTLC Chromatograms (related drug(s))

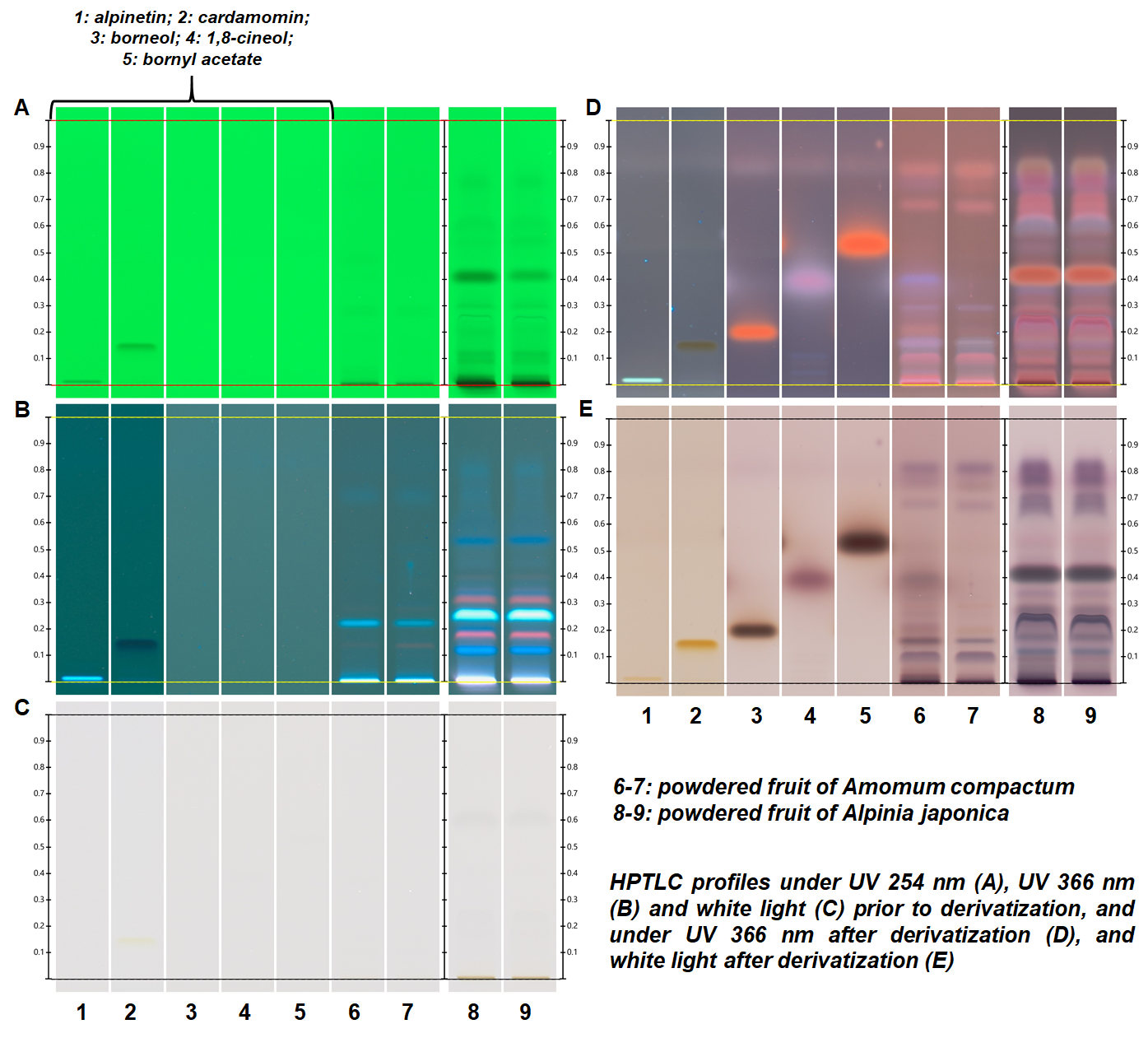

ATLAS documents ATLAS Method document of Alpinia japonica
Image comparison of Alpinia japonica
Image comparison of Alpinia japonica and related herbal drugs
visionCATS data (CAMAG software)
